Showing Lost Highlights

You can check the lost highlights by showing overexposure part in different colors. If the highlight is not lost, it is shown in black. If lost, it is shown in another color. For coloring details, refer to "Coloring of lost highlights". The lost highlights of a movie file or an image dust-off data (NDF) cannot be displayed.
About lost highlights
When a bright part of object is shown in white, it is called "Lost Highlights". If an object has high contrast and if you adjust the exposure to the dark parts of the object, lost highlights may occur. If you adjust the exposure to the bright part of the object, the lost shadows may occur due to underexposure.
  1. Set the view mode to [Image Viewer] and select an image to show lost highlights.
  1. From the [Image] menu, select [Show Lost Highlights].

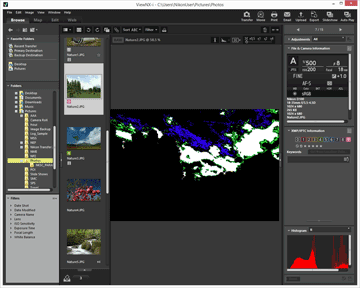

    The lost highlights of the selected image are shown. For coloring details, refer to "Coloring of lost highlights".
    Lost highlights will remain even if you change the view mode to [Full Screen].
    To stop showing lost highlights, select [Show Lost Highlights] again from the [Image] menu.
Other available methods
  • Press the "H" key.
  • The lost highlights are also shown if you display an image in the [Full Screen] mode, right-click the mouse button (or hold down "Control" key and click in Mac OS), and select [Show Lost Highlights].

Coloring of lost highlights

If an image has lost highlights, the area where values are 254 or less for every channel is shown in black. The areas where the Red, Green, and/or Blue channel values are 255 are shown in another color. Using the "Histogram", you can check each color channel status.
White
This area contains values of 255 for the Red, Green, and Blue channels.
Yellow
This area contains values of 255 for the Red and Green channels.
Magenta
This area contains values of 255 for the Red and Blue channels.
Cyan
This area contains values of 255 for the Green and Blue channels.
Red
This area contains values of 255 for the Red channel.
Green
This area contains values of 255 for the Green channel.
Blue
This area contains values of 255 for the Blue channel.
Black
All values in this area are less than 255.
