Using a Computer to Create Wireless LAN Network Profiles for the WT-7, WT-6, or WT-5

D6 Cameras

Network profiles for the D6 can only be created and edited and their passwords changed only when a WT-6 wireless transmitter is connected. Network profiles can be accessed via using the Wired LAN/WT option in the camera setup menu.

Cameras Compatible with the WT-7

A computer can be used to change passwords and to create and edit profiles for use with the WT-7. Profiles created with a computer can be accessed using the Network or Wireless transmitter (WT-7) option in the camera setup menu.

  1. Connect the computer to the camera.

    After turning the computer on and waiting for it to start up, connect the camera using the supplied USB cable and then turn the camera on. Exit Nikon Transfer 2 if it starts.

    Connecting to the WT-5 Using the UT-1

    Connecting the camera to a WT-5 using the UT-1 requires UT-1 firmware version 1.1 or later. To check the UT-1 firmware version, connect the UT-1 to the camera and select Network > Options > Firmware version.

  2. Launch the Wireless Transmitter Utility.

    Click Next once the Wireless Transmitter Utility launches.

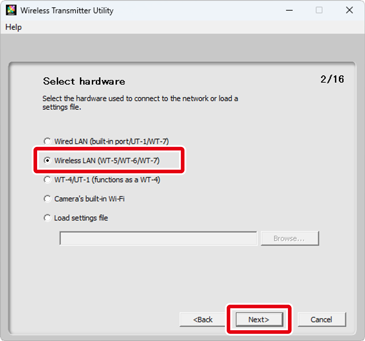

  3. Select Wireless LAN (WT-5/WT-6/WT-7) and click Next.

    Using Built-in Camera Wireless LAN

    To choose the destination folder and application, select Camera's built-in Wi-Fi in Step 3 before clicking Next. For more information, see “Choosing the Destination Folder and Application”.

    Importing Existing Profiles

    To import network profiles previously saved to the computer, select Load settings file in Step 3 and click Browse. For information on saving network profiles, see “Saving Network Profiles”.

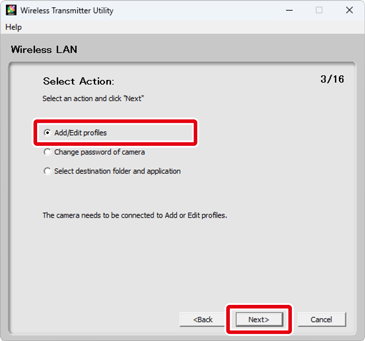

  4. Select Add/Edit profiles and click Next.

    Changing the Camera Password

    Selecting Change password of camera before clicking Next in Step 4 displays a password-entry dialog. Entering a password in this dialog will cause the Wireless Transmitter Utility to display a password prompt when the camera is connected to other computers. Once the correct password has been entered, the prompt will not be displayed again.

    At default settings, the camera is not password protected; after selecting Change password of camera for the first time, you will need to leave the Enter old password field blank. To change an existing password, enter the old password before typing the new password. To remove the password, select Reset password (profiles will be lost) and click Next. Please note that resetting the password deletes all existing device profiles from the camera. Click Back to exit without changing password settings.

    Choosing the Destination Folder and Application

    If Select destination folder and application is selected in Step 4, clicking Next will display a dialog where you can choose the destination folder for pictures downloaded from the camera in image transfer mode. Click Browse to select from a list of available folders. A sub-folder can be entered in the field below.

    The default destination is:

    • Windows: \Users\“user name”\Pictures\Wireless Transmitter Utility
    • macOS: /Users/“user name”/Pictures/Wireless Transmitter Utility

    The application used to display pictures when transfer is complete can be selected from Open images with this application after transfer menu; choose from Windows Explorer (or in macOS, the Finder), NX Studio, Capture NX-D, and ViewNX-i. Applications that are not installed will not be listed.

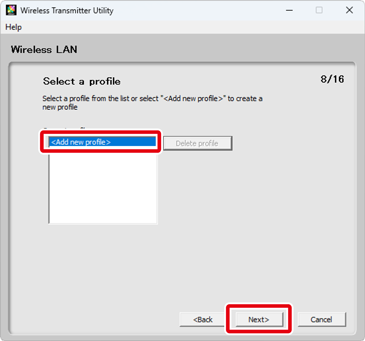

  5. Select Add new profile and click Next.

    To edit an existing network profile, select it and click Next. To delete an existing profile, select it and click Delete profile. The Wireless Transmitter Utility cannot be used to alter profiles that have been protected using the camera Password protection option. Choose Off for Password protection before deleting or modifying profiles.

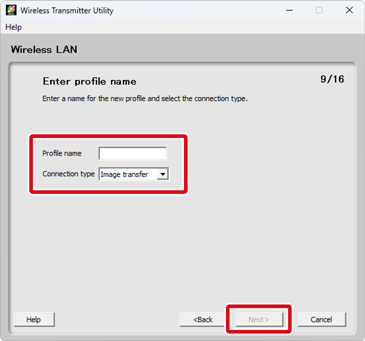

  6. Enter a profile name and choose a connection type.

    Enter a profile name of up to 16 characters and choose a connection type from FTP upload, Image transfer, Camera control, or HTTP server. Click Next when settings are complete.

    HTTP Server Mode

    HTTP server mode is not available when the camera is connected to the network using the UT-1.

  7. Select Manual setup (for advanced users) and click Next.

    If the dialog shown in the illustration is not displayed, proceed to Step 8.

    Automatic Setup

    If you chose Automatic setup (recommended) in Step 7, wireless LAN settings will be adjusted automatically. Select Infrastructure network (recommended) or Access point and click Next to proceed to Step 10.

    If you selected Infrastructure network (recommended), choose the network settings you’ll use to connect from the pull-down menu and enter an Encryption key. Mac users can choose the Encryption and Key index from pull-down menus.

    Note that Automatic setup (recommended) will not be available if:

    • you are editing an existing network profile,
    • you are using a third-party wireless LAN adapter, or
    • the computer uses a static IP.

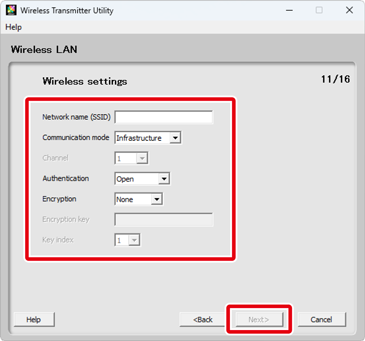

  8. Adjust settings for connection to a wireless network.

    Click Next when settings are complete. For more information, refer to the table below.

    Option Description
    Network name (SSID) Enter a name of the network in which the computer or the FTP server is included.
    Communication mode Choose from Infrastructure and Access point.
    Channel

    If you selected Access point for Communication mode, choose a wireless channel. If the network name (SSID) is the same as the channel, the channel actually used may differ from that selected here. If you selected Infrastructure for Communication mode, the channel will be selected automatically.
    Authentication

    Choose the authentication type. The options available vary with the option selected for Communication mode.

    Communication mode Authentication options
    Infrastructure Open, Shared, WPA-PSK, WPA2-PSK
    Access point Open, WPA2-PSK
    Encryption

    Choose the encryption type. The options available vary with the option selected for Authentication.

    Authentication Encryption types
    Open None, WEP64, WEP128
    Shared WEP64, WEP128
    WPA-PSK TKIP, AES
    WPA2-PSK AES
    Encryption key

    Enter an encryption key.

    Encryption Encryption key (password)
    WEP (WEP64) 5-character ASCII or 10-digit hexadecimal key
    WEP (WEP128) 13-character ASCII or 26-digit hexadecimal key
    TKIP/AES ASCII key of 8 to 63 characters or 64-digit hexadecimal key
    Key index

    Choose a key index if WEP64 or WEP128 is selected for Encryption. The default index is 1. A key index is not required if None is selected for Encryption.

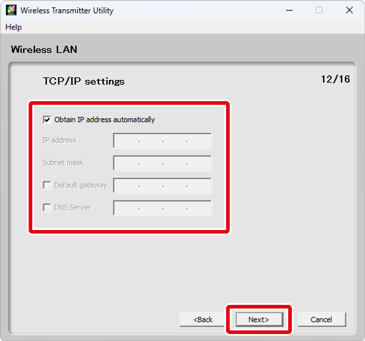

  9. Adjust TCP/IP settings.

    Click Next when settings are complete. For more information, refer to the table below.

    Option Description
    Obtain IP address automatically Select this option if the network includes a DHCP server. Remove the check from this option if the network does not include a DHCP server or if the IP address is to be configured manually.
    IP address Enter an IP address for the WT-5, WT-6, or WT-7.
    Subnet mask Enter a subnet mask for the WT-5, WT-6, or WT-7.
    Default gateway If a gateway is required, select this option and enter the gateway IP address.
    DNS server If a DNS server is required, select this option and enter the DNS server IP address.

    Choosing an IP Address

    Note that the IP address must be different from that of the computer, wireless LAN access point and FTP server. For example, if the IP address of the wireless LAN access point is “192.168.1.2”, that of the computer or FTP server can be “192.168.1.3”, and that of wireless transmitter (WT-5, WT-6, or WT-7) can be “192.168.1.4”. Note, however, that the IP addresses for the wireless LAN access point, the wireless transmitter (WT-5, WT-6, or WT-7), the computer, and the FTP server must all belong to the same class.

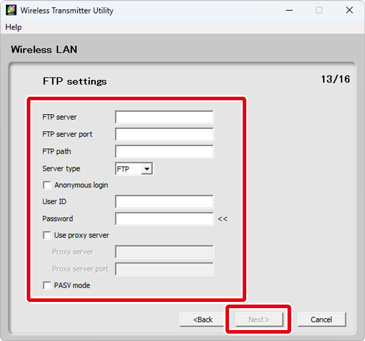

  10. Adjust FTP server settings.

    FTP server settings will only be available if FTP upload is selected in Step 6. Proceed to Step 11 if another option is selected. After adjusting settings, click Next. For more information, refer to the table below.

    Option Description
    FTP server Enter the IP address (or URL) of the FTP server.
    FTP server port Enter the port number for the FTP server.
    FTP path Choose the folder to which images will be uploaded.
    Server type Select an operation mode from FTP and SFTP.
    Anonymous login Select this option if the FTP server permits anonymous login.
    User ID Enter a valid login name for the FTP server.
    Password Enter a valid password for the FTP server.
    Use proxy server If a proxy server is required, select this option and enter the proxy server’s IP address and port number.
    PASV mode Select this option when connecting in PASV mode.

  11. Click Next when settings are complete.

    Profile information will be displayed; to return to the confirmation dialog and adjust settings, click Back.

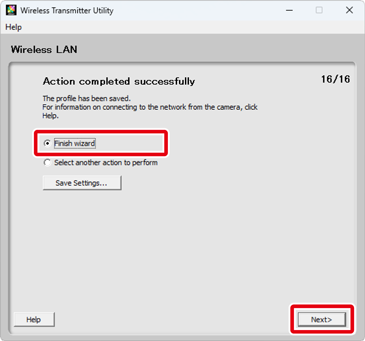

  12. Select Finish wizard and click Next.

    Choose Select another action to perform and click Next to save the profile and return to Step 3.

  13. Turn the camera off and disconnect the USB cable.

    Wireless setup is now complete. For information on connecting to the network from the camera, see “Connecting Using Profiles Created on a Computer”.

Saving Network Profiles

Click Save Settings in Step 12 to save network profiles in “wts” or “txt” format. To load saved profiles, click Load settings file in Step 3, click Browse, and select the desired file.

  • Text (“txt”) format network profiles for FTP upload and HTTP server modes can be copied to the root directory of the camera memory card and loaded onto the camera using:
    • Wireless transmitter (WT‑7) in the setup menu (Z 7II, Z 6II, Z 7, and Z 6 cameras),
    • Wired LAN/WT in the setup menu (D6 cameras), or
    • Network in the setup menu (other cameras).
  • The saved network profiles do not include encryption keys to the wireless network or passwords for the FTP server. You can configure the settings on the camera after loading the profiles to the camera.
