The NX Studio Window

The elements of the NX Studio window are shown below.

The Menu Bar
Select menu options (0 Menu List).
The Toolbar
Launch Nikon Transfer 2 or other software, print pictures, or perform other tasks.
The Browser Palette
Select folders in the [Folders] list, view frequently-used folders you’ve added to [Favorite Folders], or browse [Albums], personalized collections of frequently-viewed photos.
The View Area
Pictures are displayed here (0 Viewing Pictures).
The Adjustments/Info Palette
Shows image information and adjustments for the selected pictures.

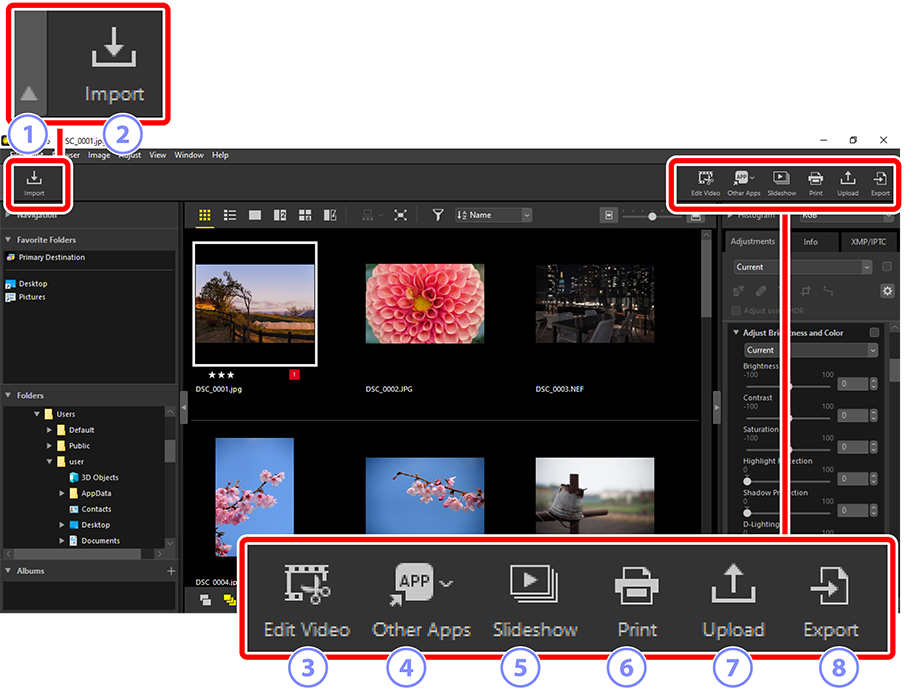

The Toolbar

View/Hide Toolbar
Click to view or hide the toolbar.
[Import]
Launch Nikon Transfer 2.
[Edit Video]
Edit videos (0 Video Editing (Movie Editor)).
[Other Apps]
Open selected pictures using other software. Software can be added via [Options] > [Open with Application] (0 [Open with Application]).
[Slideshow]
View the pictures in the current selection or current folder as a slide show (0 Slide Shows).
[Print]
Print the pictures in the current selection (0 Printing).
[Upload]
Upload the pictures in the current selection to NIKON IMAGE SPACE (0 Uploading Pictures to the Web).
[Export]
Export the pictures in the current selection in JPEG or TIFF format. Options available during export include resizing pictures and removing image information (0 Exporting Pictures).

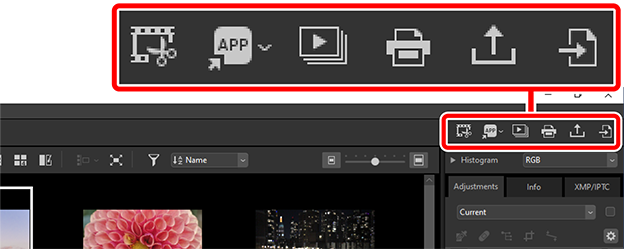

Toolbar Display Options

  • To display the tools in the toolbar as icons without text, select [Customize Toolbar] > [Icon only] in the [Window] menu. Use [Customize] to choose the tools displayed.

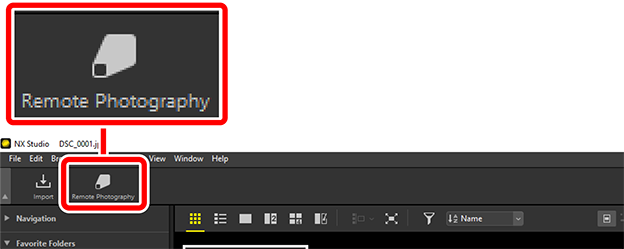

  • If installed, NX Tether can be launched by clicking [Remote Photography] in the toolbar.

Opening Pictures in Other Applications

Use [Other Apps] to open copies of the pictures in the current selection in other applications.

  • The destination to which the copies are saved can be selected using [Options] > [Open with Application] (0[Open with Application]).

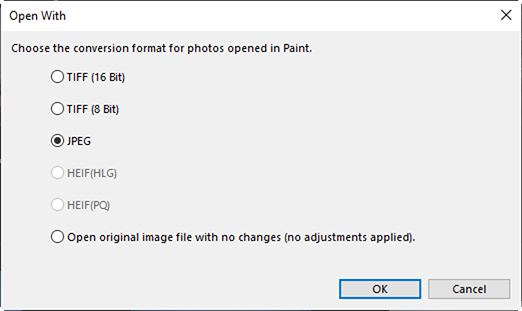

  • The format in which the copies are saved can be selected in a dialog displayed after you have chosen the desired application.

    • [TIFF (16 Bit)]/[TIFF (8 Bit)]/[JPEG]: The pictures will be saved and opened in the selected format with any enhancements applied in NX Studio intact. Choose [TIFF (16 Bit)] to open NEF (RAW) pictures in the destination application with no drop in quality.
    • [Open original image file with no changes (no adjustments applied)]: The files will be opened in their original formats. Enhancements made in NX Studio will not be applied.
    • The pictures will not open if the chosen format is not supported in the selected application.
    • Click [OK] to save the pictures in the selected format and open them in the chosen application.

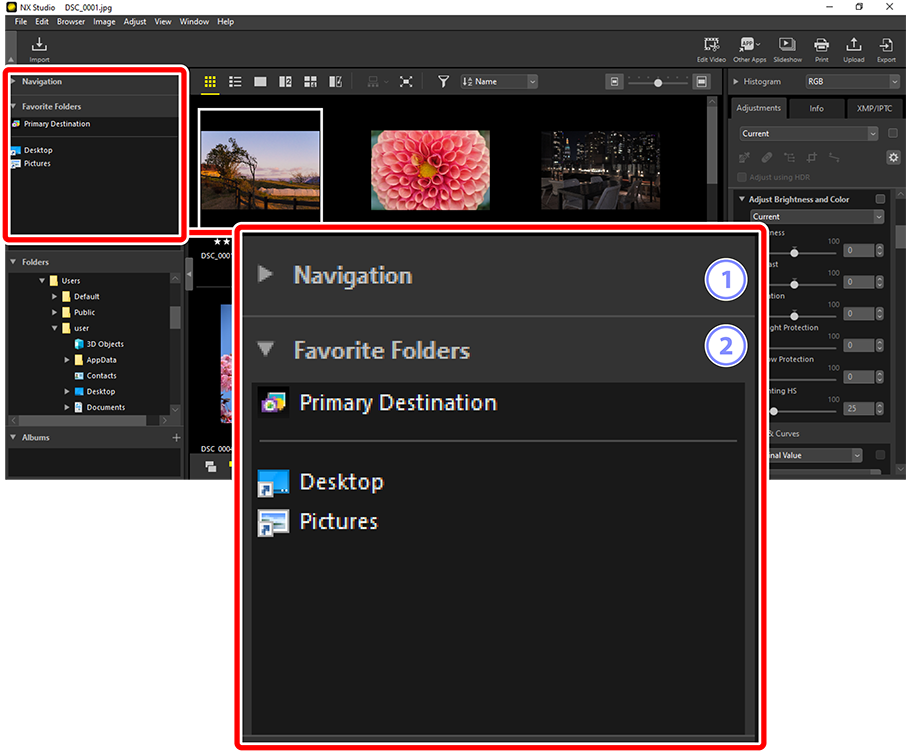

The Browser Palette

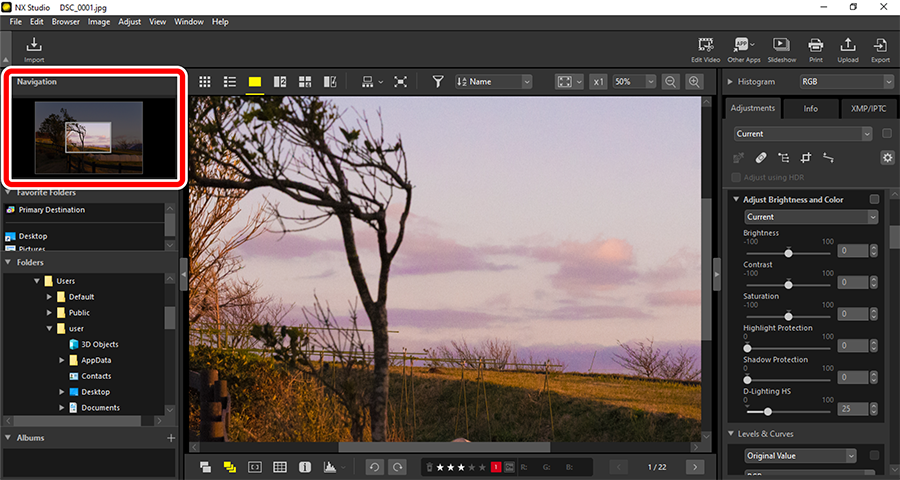

[Navigation]

A small image showing pictures displayed in the view area in single- or multi-frame view.

  • A frame shows the area visible when the picture is zoomed in.
  • Drag the frame to scroll the display in the view area to a different area of the image.

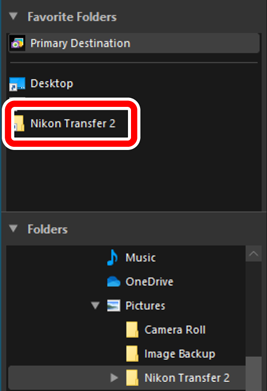

[Favorite Folders]

Add folders to favorites by dragging them in from the [Folders] list.

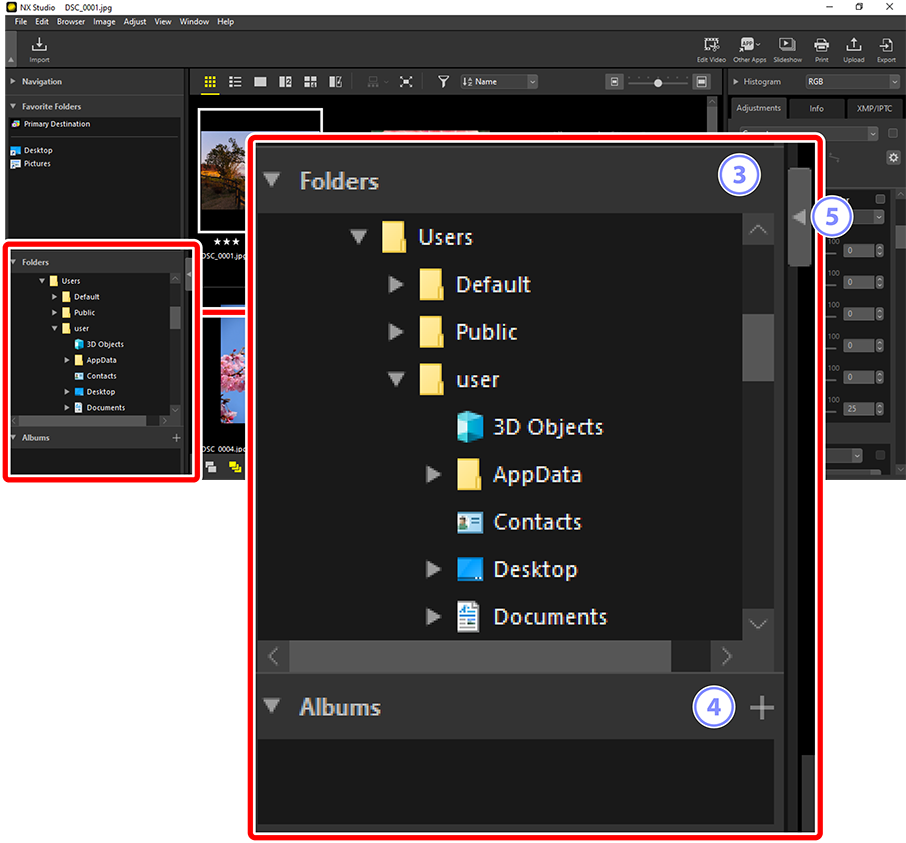

[Folders]
A hierarchical display of the folders on the computer. Click folders to display the pictures they contain in the view area.
[Albums]
Create and manage albums. Use albums to organize pictures across folders (0 Collecting Pictures in Albums).
View/Hide
Click to view or hide the browser palette.

Viewing and Hiding Sub-Palettes

The [Navigation], [Favorite Folders], [Folders], and [Albums] sub-palettes can be viewed or hidden by clicking the / buttons at their top left corners.

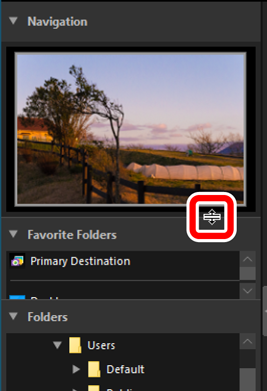

Resizing Sub-Palettes

Drag the borders between the [Navigation], [Favorite Folders], [Folders], and [Albums] sub-palettes to adjust their size.

Collecting Pictures in Albums

Organize pictures by theme. Using albums to collect pictures from multiple folders can help you quickly find the shot you want.

  1. To create a new album, click and enter the album name.

  2. Display the filmstrip (0 Filmstrip View) or select the thumbnail grid or thumbnail list view in the view area (0 Choosing a View Mode).

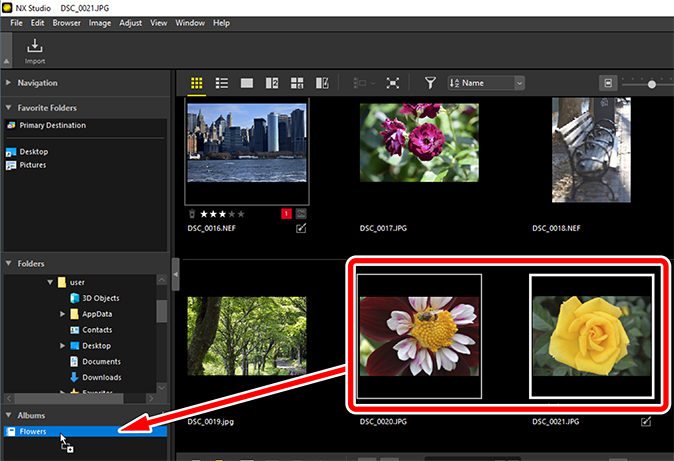

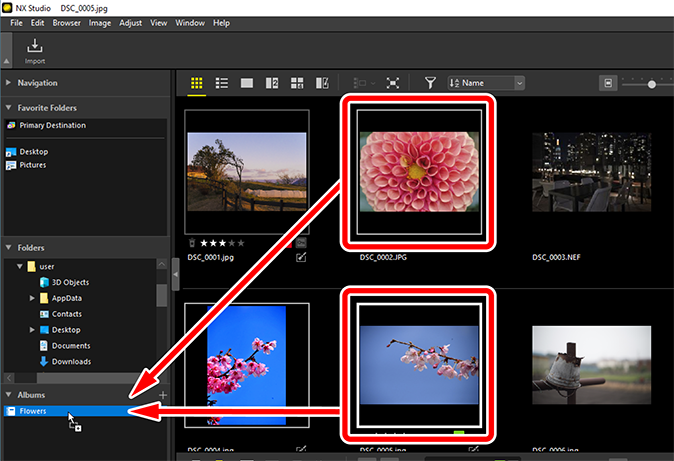

  3. Drag and drop pictures into the album created in Step 1.

    Selecting Multiple Pictures for Drag-and-Drop

    Multiple pictures can be selected for drag-and-drop using the control (or in macOS, the command) or shift key.

  4. Add pictures from other folders.

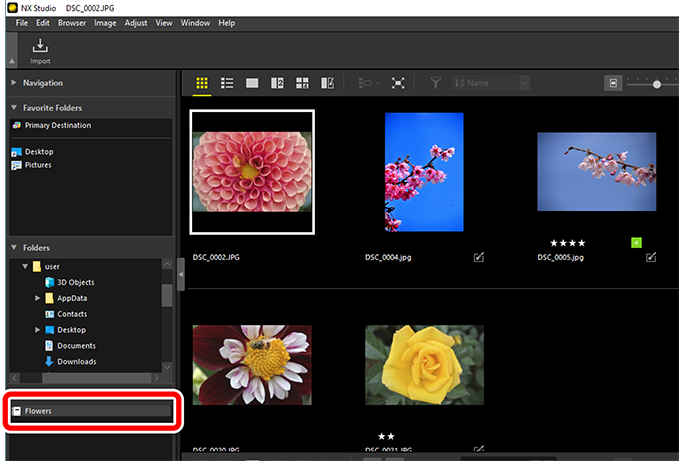

  5. Click the album name to view the pictures added to the album in Steps 3 and 4.

Albums

  • Folders cannot be created in albums.
  • Albums do not support sort or filter operations.
  • Pictures in albums are stored in their original folders and are not copied or moved into the albums.
  • To delete an album, right-click (or in macOS, control-click) the album and select [Delete Album].

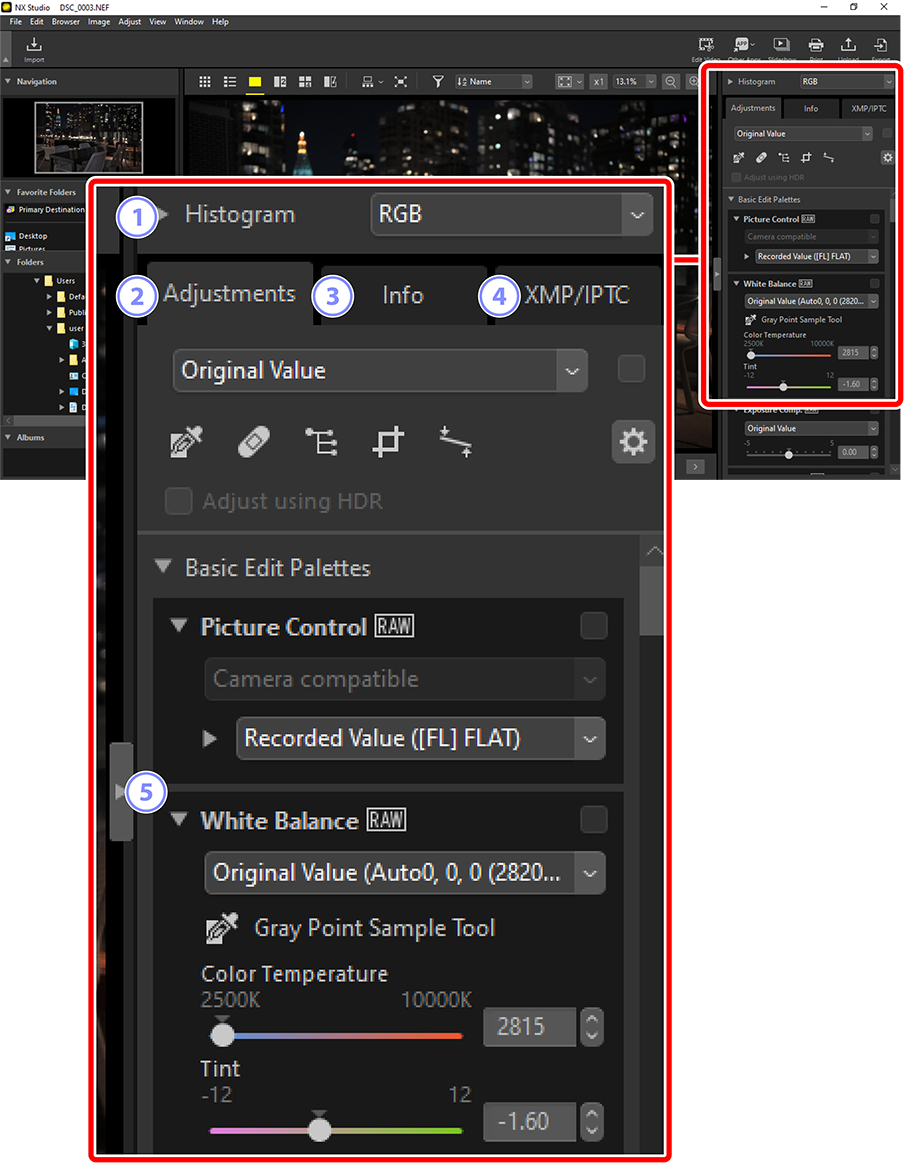

The Adjustments/Info Palette

[Histogram]

The histogram for the current picture. To view or hide the histogram, click the / button.

  • The channel and brightness can be selected from the pull-down menu.

  • Select [RGB] to display the histograms for all three channels, [R] (red), [G] (green), and [B] (blue), overlaid with each other. Regions where the histograms overlap are shown in other colors. [G] and [B] overlaps are shown in cyan, [R] and [B] overlaps in magenta, and [R] and [G] overlaps in yellow. Regions where all channels overlap are shown in white.

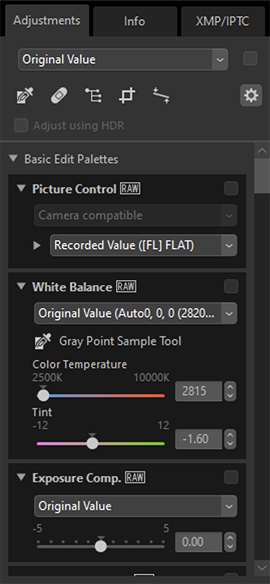

The [Adjustments] Tab

Enhance the current picture. Among the many adjustments on offer are cropping and straightening tools and tools for adjusting such parameters as exposure, white balance, and brightness (0 Enhancing Pictures).

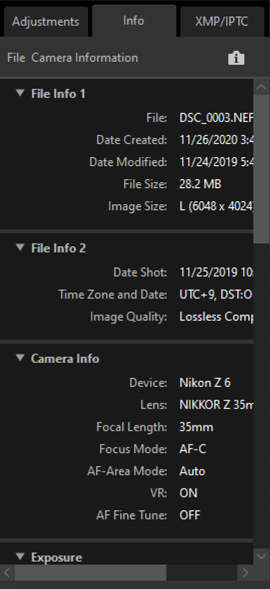

The [Info] Tab

View information on the current picture, including the camera model name, date of recording, and exposure.

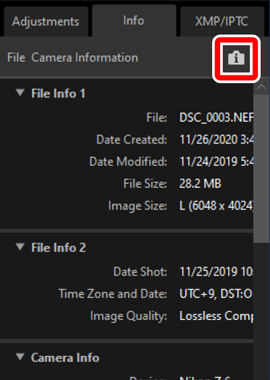

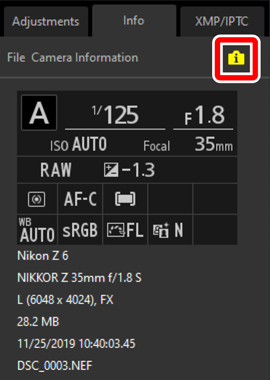

View Mode

The display in the [Info] tab changes with each press of the view mode button.

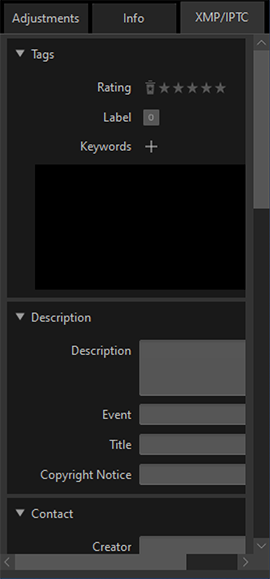

The [XMP/IPTC] Tab

Edit XMP/IPTC metadata, including labels and ratings. Changes to labels and ratings in the view area or [Image] menu are reflected in the [XMP/IPTC] tab.

View/Hide
Click to view or hide the adjustments/info palette.
